Endeavorsil™ Columns

-->

Features of Endeavorsil™ Columns

  • Combined speed, resolution and sensitivity
  • Reduced analysis time and solvent waste
  • High efficiency combined with high selectivity generates more information and productivity
  • Superior column performance at higher pressure
  • Excellent separation characteristics over wide pH range

Endeavorsil™ Material Characteristics

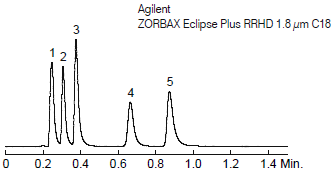

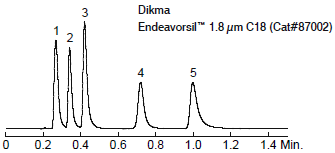

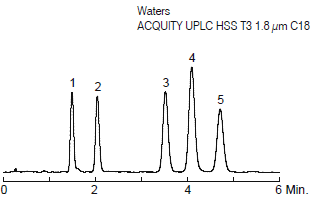

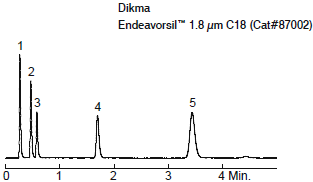

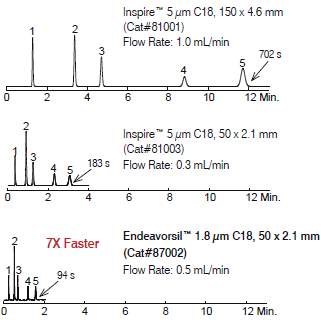

Speed
Column: Listed on chromatograms
Mobile Phase: MeCN:H2O = 55:45
Temperature: Ambient
Detection: UV 254 nm
Sample: 1. Uracil 4. Toluene
  2. Acetophenone 5. Naphthalene
  3. Methyl benzoate

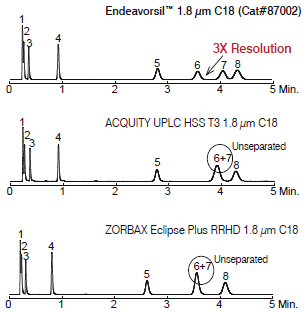

Selectivity*
Column: Listed on chromatograms
Dimension: 50 x 2.1 mm
Mobile Phase: MeCN:H2O = 60:40
Flow Rate: 0.5 mL/min
Temperature: Ambient
Detection: UV 254 nm
Sample: 1. Uracil 5. Butylbenzene
  2. Caffeine 6. o-Terphenyl
  3. Phenol 7. Triphenylene
  4. Toluene 8. Amylbenzene

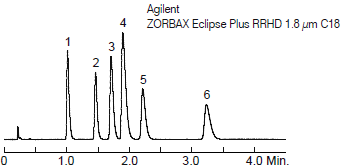

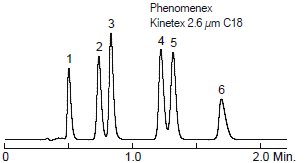

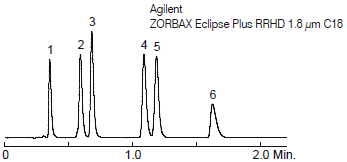

Separation of Hydrophobic, Polar and Basic Mixture*
Column:   Listed on chromatograms
Dimension: 50 x 2.1 mm
Mobile Phase: MeOH:20 mM phosphate buffer (pH 7) = 80:20
Flow Rate: 0.5 mL/min
Temperature: Ambient
Detection: UV 254 nm
Sample: 1. Uracil   4. Naphthalene
  2. Butyl paraben 5. Acenaphthene
  3. Dipropyl phthalate 6. Amitriptyline

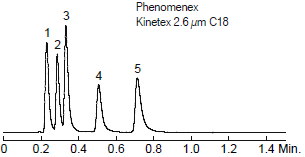

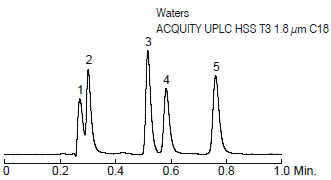

Strong Basic Compounds at Neutral pH
Column:   Listed on chromatograms
Dimension: 50 x 2.1 mm
Mobile Phase: MeOH:20 mM phosphate buffer (pH 7) = 65:35
Flow Rate:   0.5 mL/min
Temperature: Ambient
Detection: UV 254 nm
Sample: 1. Pyridine 4. Nortriptyline
  2. Codeine 5. Diphenhydramine
  3. Quinine

Cold Medicines*
Column:   Listed on chromatograms
Dimension: 50 x 2.1 mm
Mobile Phase: 0.1% HCOOH in MeCN:0.1% HCOOH in H2O = 35:65
Flow Rate: 0.5 mL/min
Temperature: Ambient
Detection:   UV 220 nm
Sample: 1. Doxylamine 4. Acetylsalicylic acid
  2. Acetaminophen 5. Salicylic acid
  3. Acetanilide

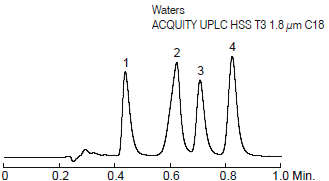

Water-Soluble Vitamins
Column: Listed on chromatograms
Dimension:   50 x 2.1 mm
Mobile Phase: 10 mM NH4COOH, pH 3
Flow Rate: 0.5 mL/min
Temperature: Ambient
Detection: UV 254 nm
Sample: 1. Pyridoxamine 3. Pyridoxal
  2. L-Ascorbic acid 4. Nicotinamide




Galushko Test*
Column: Listed on chromatograms
Dimension: 50 x 2.1 mm
Mobile Phase: MeOH:H2O = 50:50
Flow Rate: 0.5 mL/min
Temperature: Ambient
Detection: UV 254 nm
Sample: 1. Uracil 4. Benzene
  2. Aniline 5. Toluene
  3. Phenol





Verzele Test
Column:   Listed on chromatograms
Dimension:   50 x 2.1 mm
Mobile Phase: MeOH:0.5% CH3COONa (pH 7.8) = 60:40
Flow Rate: 0.5 mL/min
Temperature: Ambient
Detection: UV 254 nm
Sample: 1. Acetylacetone
  2. 1-Nitronaphthalene
  3. Naphthalene



Parabens*
Column: Listed on chromatograms
Dimension:   50 x 2.1 mm
Mobile Phase: MeCN:20 mM K2HPO4 (pH 7) = 50:50
Flow Rate: 0.5 mL/min
Temperature:   Ambient
Detection: UV 254 nm
Sample: 1. Methyl paraben 3. Propyl paraben
  2. Ethyl paraben 4. Butyl paraben

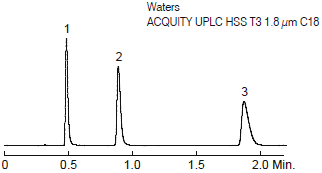

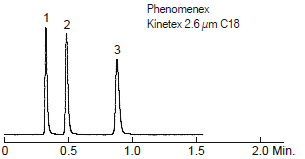

 Catecholamines
Column: Listed on chromatograms
Dimension: 50 x 2.1 mm
Mobile Phase: 0.1% TFA in H2O
Flow Rate: 0.5 mL/min
Temperature: Ambient
Detection: UV 270 nm
Sample: 1. Norepinephrine
  2. Epinephrine
  3. Dopamine




β  -Blockers at Neutral PH*
Column:   Listed on chromatograms
Dimension:   50 x 2.1 mm
Mobile Phase: MeCN:20 mM phosphate buffer (pH 7) = 30:70
Flow Rate: 0.5 mL/min
Temperature: Ambient
Detection: UV 220 nm
Sample:   1. Nadolol 4. Labetolol
  2. Pindolol 5. Propranolol
  3. Metoprolol

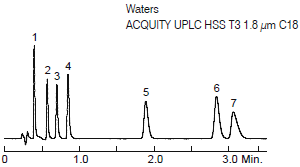

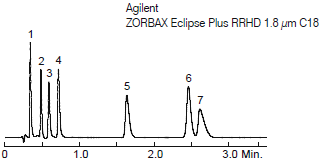

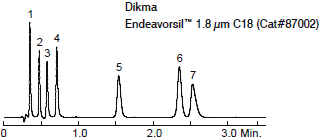

β -Blockers at Low PH
Column: Listed on chromatograms
Dimension:   50 x 2.1 mm
Mobile Phase: 0.1% TFA in MeCN:0.1% TFA in H2O = 25:75
Flow Rate: 0.5 mL/min
Temperature:   Ambient
Detection: UV 220 nm
Sample: 1. Nadolol 5. Labetolol
  2. Pindolol 6. Propranolol
  3. Acebutolol 7. Alprenolol
  4. Metoprolol





TCAs at Low PH*
Column: Listed on chromatograms
Dimension: 50 x 2.1 mm
Mobile Phase: 0.1% TFA in MeCN:0.1% TFA in H2O = 35:65
Flow Rate: 0.5 mL/min
Temperature: Ambient
Detection: UV 254 nm
Sample: 1. Doxepin 4. Amitriptyline
  2. Desipramine 5. Trimipramine
  3. Nortriptyline 6. Clomipramine

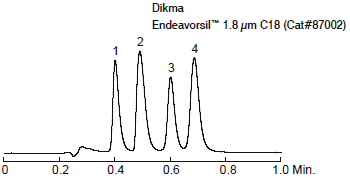

Antiulcers
Column: Listed on chromatograms
Dimension:   50 x 2.1 mm
Mobile Phase: MeOH:10 mM CH3COONH4 (pH 7) = 35:65
Flow Rate:   0.5 mL/min
Temperature: 30 ºC
Detection: UV 220 nm
Sample: 1. Famotidine 3. Cimetidine
  2. Ranitidine 4. Nizatidine




Polar Acids*
Column: Listed on chromatograms
Dimension: 50 x 2.1 mm
Mobile Phase: 0.1% HCOOH in MeCN:0.1% HCOOH in H2O = 20:80
Flow Rate: 0.5 mL/min
Temperature: 30 ºC
Detection: UV 254 nm

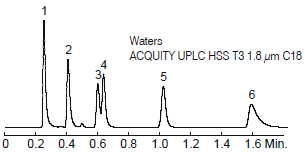

Sample: 1. p-Aminobenzoic acid 4. Salicylic acid
  2. Homovanillic acid 5. p-Chlorobenzoic acid
  3. Sorbic acid 6. p-Nitrobenzoic acid




Acidic Compounds
Column:   Listed on chromatograms
Dimension: 50 x 2.1 mm
Mobile Phase: 0.1% HCOOH in MeCN:0.1% HCOOH in H2O = 25:75
Flow Rate: 0.5 mL/min
Temperature: 30 ºC
Detection: UV 254 nm
Sample: 1. L-Ascorbic acid 4. Acetylsalicylic acid
  2. p-Aminobenzoic acid 5. Sorbic acid
  3. Homovanillic acid 6. Salicylic acid




Anti-inflammatories*
Column:   Listed on chromatograms
Dimension:   50 x 2.1 mm
Mobile Phase: 0.1% HCOOH in MeCN:0.1% HCOOH in H2O = 50:50
Flow Rate:   0.5 mL/min
Temperature: 30 ºC
Detection:   UV 254 nm
Sample: 1. Phenacetin 4. Fenoprofen
  2. Tolmetin  5. Flurbiprofen
  3. Ketoprofen  6. Ibuprofen

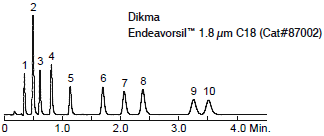

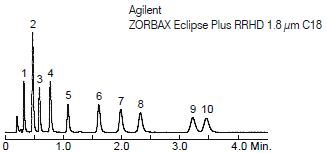

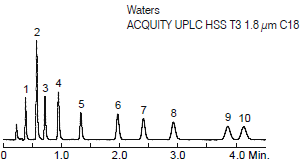

Antibacterials
Column: Listed on chromatograms
Dimension: 50 x 2.1 mm
Mobile Phase: 0.1% HCOOH in MeCN:0.1% HCOOH in H2O = 20:80
Flow Rate: 0.5 mL/min
Temperature: Ambient
Detection: UV 254 nm
Sample: 1. Sulfanilamide 6. Sulfamethoxazole
  2. Carbadox 7. Sulfisoxazole
  3. Sulfamerazine 8. Oxolinic acid
  4. Sulfamethoxypyridazine 9. Sulfadimethoxine
  5. Furazolidone 10. Sulfaquinoxaline





Antifungals*
Column:   Listed on chromatograms
Dimension: 50 x 2.1 mm
Mobile Phase: 0.1% HCOOH in MeCN:0.1% HCOOH in H2O = 30:70
Flow Rate: 0.5 mL/min
Temperature: 30 ºC
Detection: UV 254 nm
Sample: 1. p-Aminobenzoic acid 3. Benzoic acid
  2. Acetylsalicylic acid 4. Salicylic acid



Steroids
Column: Listed on chromatograms
Dimension: 50 x 2.1 mm
Mobile Phase: MeOH:H2O = 50:50
Flow Rate: 0.5 mL/min
Temperature: 30 ºC
Detection: UV 254 nm
Sample: 1. Prednisone 4. Hydrocortisone 21-acetate
  2. Prednisolone 5. 11-α -Hydroprogesterone
  3. Dexamethasone
